Product Details:
|
| Cavity: | CRS1010 | Pin: | 4J50 Copper Cord |
|---|---|---|---|
| Glass Insulator: | Elan#13 | Lid: | 4J42 |
| Dielectric Voltage: | AC 220V | ||
| Highlight: | Thin Flange hermetic microelectronic package,CRS 1010 housing hermetic seal,GJB548 hermetic packages |
||
| Product Model | JOPTEC | |

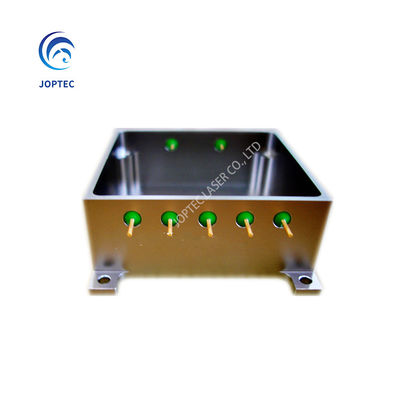

| Product Name | Thin Flange With Good Current Capacity Compression sealing | |
| Plating Coating | Fully plating Au or selective plating Au | |
| Finish | Package and pins and lid are plated Ni:1.3~8.9um and pins are plated Au≥1.3um | |
| Product Composition | Material | Quantity |
| 1. Cavity | CRS1010 | 1 |
| 2. Pin | 4J50 Copper Cord | 7 |
| 3. Glass insulator | Elan#13 | 7 |
| 4 .Lid | 4J42 | 1 |
| Dielectric Voltage | AC 220V Between pin and package humidity under 45%~55% leak rate less than 1mA | |
| Insulation Resistance | 500V DC resistance between two arbitrary pins is ≥1*1010Ω | |
| Hermeticity | Leak rate is ≤1*10-3Pa.cm3/s | |
| Product Features | 1. Housing material adopts CRS1010 which has good heat dissipation. | |
| 2. The pin material adopts Copper cored alloy which has low resistance that can load high voltage. | ||
| 3. The method of sealing cap is parallel sealing welding. | ||
| 4. The pin cross bottom or sidewall which can be designed according to customers' needs. | ||
| 5. The position of ground lead can be designed according to customers' needs. | ||
| 6. The design of lid fits the dimension of package. | ||
| 7. Customers could choose fully plating or selective plating. | ||
| 8. All index of parameter conform to requirement of GJB548 | ||
