Heat Dissipation Oxygen Free Copper High Power Butterfly Package

Heat Dissipation Oxygen Free Copper High Power Butterfly Package
Heat Dissipation Oxygen Free Copper High Power Butterfly Package Heat Dissipation Oxygen Free Copper High Power Butterfly Package Heat Dissipation Oxygen Free Copper High Power Butterfly Package Heat Dissipation Oxygen Free Copper High Power Butterfly Package Heat Dissipation Oxygen Free Copper High Power Butterfly Package Heat Dissipation Oxygen Free Copper High Power Butterfly Package

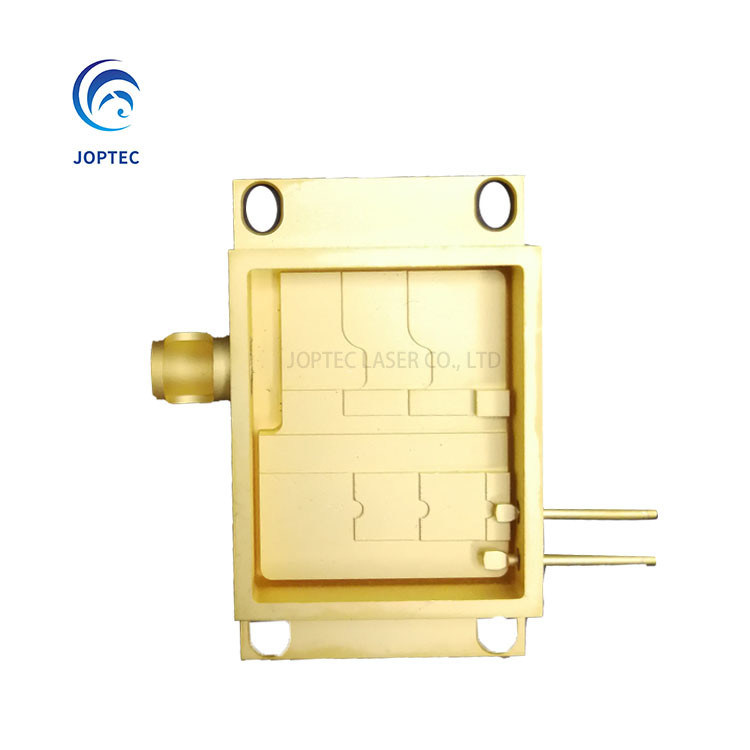

Large Image :  Heat Dissipation Oxygen Free Copper High Power Butterfly Package

Product Details:
Place of Origin: CHINA
Brand Name: JOPTEC
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Packaging Details: Boxes
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 5000000 PCS/Month

Heat Dissipation Oxygen Free Copper High Power Butterfly Package

Description
Applications: Laser Marking, Laser Cutting, Laser Welding, Medical Cosmetology And Other Fields COS Mounting Surface Height Difference Accuracy: ±0.01mm
Flatness: ≤0.05mm Roughness: 0.8um
Air Tightness: ≤1x10-3Pa.cm3/s(He) Insulation Resistance: ≥1x1010Ω(500V DC) (glass),
Salt Spray Resistance: 24h Plating Quality Assessment: N2, 450±10℃, 15min
Temperature Cycle: -55℃~125℃, 20cycles
Highlight:

Heat Dissipation Copper Butterfly Package

,

0.05mm flatness hermetic seal

,

0.8um roughness Laser Package

Product name: high power laser package

Applications: laser marking, laser cutting, laser welding, medical cosmetology and other fields

Product features: Fiber laser pump source package, meeting the high heat dissipation requirements of the module, the base material is oxygen-free copper with high thermal conductivity.


Technical characteristics :

COS mounting surface height difference accuracy: ±0.01mm

Flatness: ≤0.05mm

Roughness: 0.8um

Air tightness : ≤1x10-3Pa.cm3/s(He)

Insulation resistance: ≥1x1010Ω(500V DC) (glass),

≥1x1010Ω(500V DC) (ceramic)

Salt spray resistance: 24h

Plating quality assessment: N2, 450±10℃, 15min

Temperature cycle: -55℃~125℃, 20cycles

Thermal shock: -55℃~125℃, 20cycles
