Product Details:
|
| Finish: | Fully Plating Au Or Selective Plating Au | Plating: | Package Is Plated Ni:3~11.43um And Au ≥0.8um Pins Are Plated Au ≥1.3um ;Lid Is Plated Au ≥0.8um |
|---|---|---|---|
| Cover Plate: | 4J42(42alloy) | Insulators: | BH-G/K |
| Lead: | 4J29(Kovar) | Cavity: | 4J29(Kovar) |
| Insulation Resistance: | 500V DC Resistance Between Single Pin And Shell Is ≥1*1010Ω | Hermeticity: | Leak Rate Is ≤1*10-3Pa.cm/s |
| Highlight: | 42 Alloy Hermetically Electronic Packages,4J42 cover plater hermetic seal,42 alloy housing hermetic package |
||

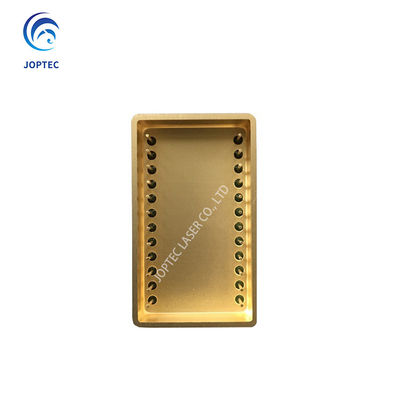

| Product name: | Suitable Deep Drawing 42 Alloy Housing Leads Perpendicular To The Substate Mounting Surface | |
| Finish: | Fully plating Au or selective plating Au | |
| Plating: |
Package is plated Ni:3~11.43um and Au ≥0.8um Pins are plated Au ≥1.3um ;Lid is plated Au ≥0.8um |
|
| Product information: | Material | Quantity |
| 1. cover plate | 4J42(42alloy) | 1 |
| 2. insulators | BH-G/K | 24 |
| 3. lead | 4J29(Kovar) | 24 |
| 4. cavity | 4J29(Kovar) | 1 |
| Insulation Resistance | 500V DC resistance between single pin and shell is ≥1*1010Ω | |
| Hermeticity | Leak rate is ≤1*10-3Pa.cm/s | |
| Product features: | 1.The main material of shell and pin are Kovar. | |
| 2.The sealing cap method adopts parallel sealing welding. | ||
| 3.Customers customize the shell height ,diameter and length of pin. | ||
| 4.The shape of pins are cyclinder and straight,which can be customerised. | ||
| 5.The pins usually rank two or four lines,which can be customerized. | ||
| 6.The position of ground lead of shell is decided by customers. | ||
| 7.The design of lid fits the dimension of shell. | ||
| 8.Customer could choose fully plating Au or selective plating Au. | ||
| 9.All index of parameters conform to GJB548. | ||
