Diode Component Module Fenico Optical Sensor Package

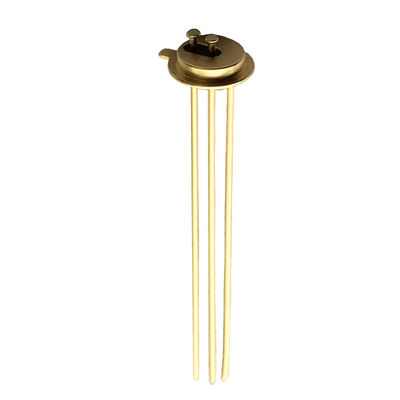

Large Image : Diode Component Module Fenico Optical Sensor Package

Product Details:

Place of Origin:	HEFEI, CHINA
Brand Name:	JOPTEC

Payment & Shipping Terms:

Minimum Order Quantity:	50 PCS
Packaging Details:	Boxes
Delivery Time:	30 Days
Payment Terms:	T/T
Supply Ability:	5000000 PCS/Month

Contact Now

Diode Component Module Fenico Optical Sensor Package

Description

Eyelet And Pin Finish:	Ni 1.3-8.9um And Plated Au≥0.3um	Eyelet:	Kovar
The Brazing Ring:	HLAgCu28	Shell Adopt Material:	FeNiCo,FeNi42 Or CRS
Shape Of Pi:	Cyclinder
High Light:	fenico header , optical sensor hermetic header , laser diode package header

Product Name

optical sensor package diode component module package

Finish: Eyelet and pins are plated Ni:1.3-8.9um and plated Au≥0.3um

Insulation Resistance:500V DC Resistance between two pins ≥1*10¹⁰Ω

Hermeticity:Leak rate≤1*10^-3Pa.cm³/s

1. Eyelet	Kovar	Kovar
2. Pin1	Kovar	Kovar
3. Pin2	Kovar	Kovar
4. Glass insulators	BH-A/K	BH-A/K
5. Pin3	Kovar	--
6. The brazing ring	HLAgCu28	--

Product features

1. Shell adopt material: FeNiCo,FeNi42 or CRS;

2. The shape of pin is cyclinder and straight,material adopts Kovar.The shape of pin used as bonding is cylinder or nailhead.

3. The sealing cap method is percussion welding or tin welding.

4. The rank of pin which cross the bottom of base could be choosen by customers.

5. The position of ground pin can be choosen by customer.

6. The design of caps need to fit the shell.

7. Customer could choose shell fully plating or pin selective plating.
