Product Details:
|
| Material: | N-BK7, Fused Silica Or Other Optical Glass | Dimension Tolerance: | +0.0, -0.2mm |
|---|---|---|---|
| Surface Quality: | 60-40 S/D | Surface Flatness: | λ/4 @ 632.8nm |
| Angle Tolerance: | ±30 Arc Sec(Standard); ±5 Arc Sec(High Precision) | Clear Aperture: | >85% Of Dimension |
| Bevel: | <0.25mm×45° | Coating: | Surfaces S1 & S2 :Single Layer MgF2 Coating,Surfaces S3 & S4: Aluminized And Painted Black |

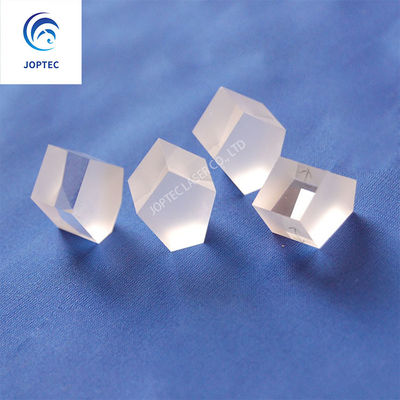

| High Light: | MgF2 coating optical glass prisms,penta prisms,Fused silica Optical Prisms |
||
| Specifications: | |
| Material: | N-BK7, Fused silica or other optical glass |
| Dimension Tolerance: | +0.0, -0.2mm |
| Surface quality: | 60-40 S/D |
| Surface flatness: | λ/4 @ 632.8nm |
| Angle Tolerance: | ±30 arc sec(Standard); ±5 arc sec(High Precision) |
| Clear Aperture: | >85% of dimension |
| Bevel: | <0.25mm×45° |
| Coating: | Surfaces S1 & S2 :Single layer MgF2 coating |
| Surfaces S3 & S4: Aluminized and painted black |
