Product Details:
|
| Ni: | 3~11.43um | Au Header Plating: | ≥1.0um |
|---|---|---|---|
| Ins Plated Au: | ≥1.3um | Glass Insulator: | DM-305 |
| Insulatioin Resistance: | 500V DC Resistance | Leak Rate: | ≤1*10-3Pa.cm3/s |
| Pin Material: | Kovar | ||
| Highlight: | Flat Bottom hermetic seal,1.5mm Depth hermetic Package,DM305 hermetic seal metal packages |
||

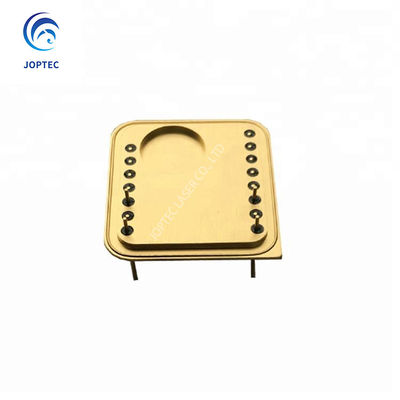

| Product Name | Well Suited Metal Package Flat Bottom Package With 1.5mm Depth In Top Seal | |
| Plating Coating | Fully Plating Au or Selective Plating Au | |
| Finish | Header and cap is plated Ni:3~11.43um and header is plated Au ≥1.0um and pins are plated Au≥1.3um | |
| Product Information | Material | Quantity |
| 1. Base | Kovar | 1 |
| 2. Brazing ring | HlAgCu28 | 1 |
| 3. Glass insulator | DM-305 | 15 |
| 4. Pin 1 | Kovar | 12 |
| 5. Pin 2 | Kovar | 4 |
| 6. Cap | Kovar | 1 |
| Insulatioin Resistance | 500V DC resistance between single pin and base is ≥1*1010Ω | |
| Hermeticity | Leak rate is ≤1*10-3Pa.cm3/s | |
| Product Features | 1.The pin material is Kovar,and the base material can be Kovar,4J42,CRS1010 which are well reliable; | |
| 2.The sealing cap method is percussion welding,tin welding or laser welding; | ||
| 3.The pin is cyclinder and straight or nailed pin | ||
| 4.The rank of pins usually adopt two or four lines and be modified according to customers'needs. | ||
| 5.The position of ground lead is decided by customers. | ||
| 6.The design of cap needs matching the dimension of base. | ||
| 7.Customer choose base fully plating Au or selective plating Au. | ||
| 8.All index of parameter of product conform to GJB548 | ||
